Where it's used
A handheld for teams on foot, suited to outdoor work in dust and wet.
- Industrial
- Construction
- Events

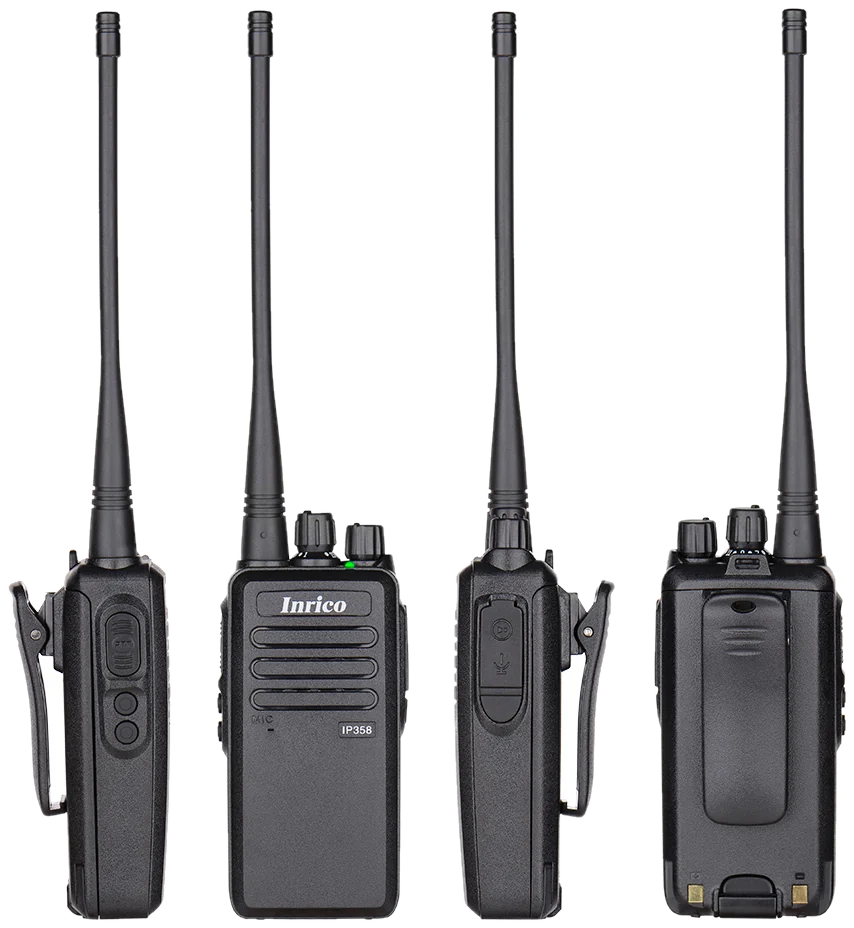

Inrico IP358 UHF Analogue Portable
R 1 570
excl. VAT
In stock
IP66 sealed
UHF 400 to 470 MHzAnalogue FM two-way radio
16 channels25 kHz or 12.5 kHz spacing
5 W outputRuns on a 1 500mAh battery
IP66 ratedDust tight, and protected against powerful water jets
Specification
Radio
| Frequency band | VHF / UHF |
|---|---|
| Frequency range | VHF 136-174MHz; UHF 400-470MHz |
| Channel capacity | 16 |
| Power | 5W |
| Channel spacing | 25kHz / 12.5kHz |
| Antenna impedance | 50Ω |
| Microphone impedance | 600Ω |
| Frequency stability | ≤ ±2.5ppm |
| Modulation type | FM |
| Max frequency deviation | ≤ 5kHz |
| Occupied bandwidth | ≤ 16kHz |
Performance
| Sensitivity | ≤ 0.25 µV (12dB S/N) |
|---|---|
| Squelch sensitivity | ≤ 0.10 µV |
| Audio power output | 1W (16Ω) |
| Adjacent channel selectivity | ≥ 84dB |
| Blocking | ≥ 85dB |
| Spurious response suppression | ≥ 70dB |
| Intermodulation immunity | ≥ 65dB |
| Standby current | 60mA (unsaved) / 15mA (saved) |
Hardware
| Operating voltage | 7.4V DC ±15% |
|---|---|
| Battery | 1500mAh |
| Speaker | 16Ω / 1W |
| Interface | 3.5mm + 2.5mm |
| Dimensions (H×W×D) | 123 × 58 × 36 mm (without belt clip and antenna) |
| Weight | ≈ 230 g |
Certification
| IP rate | IP66 |
|---|

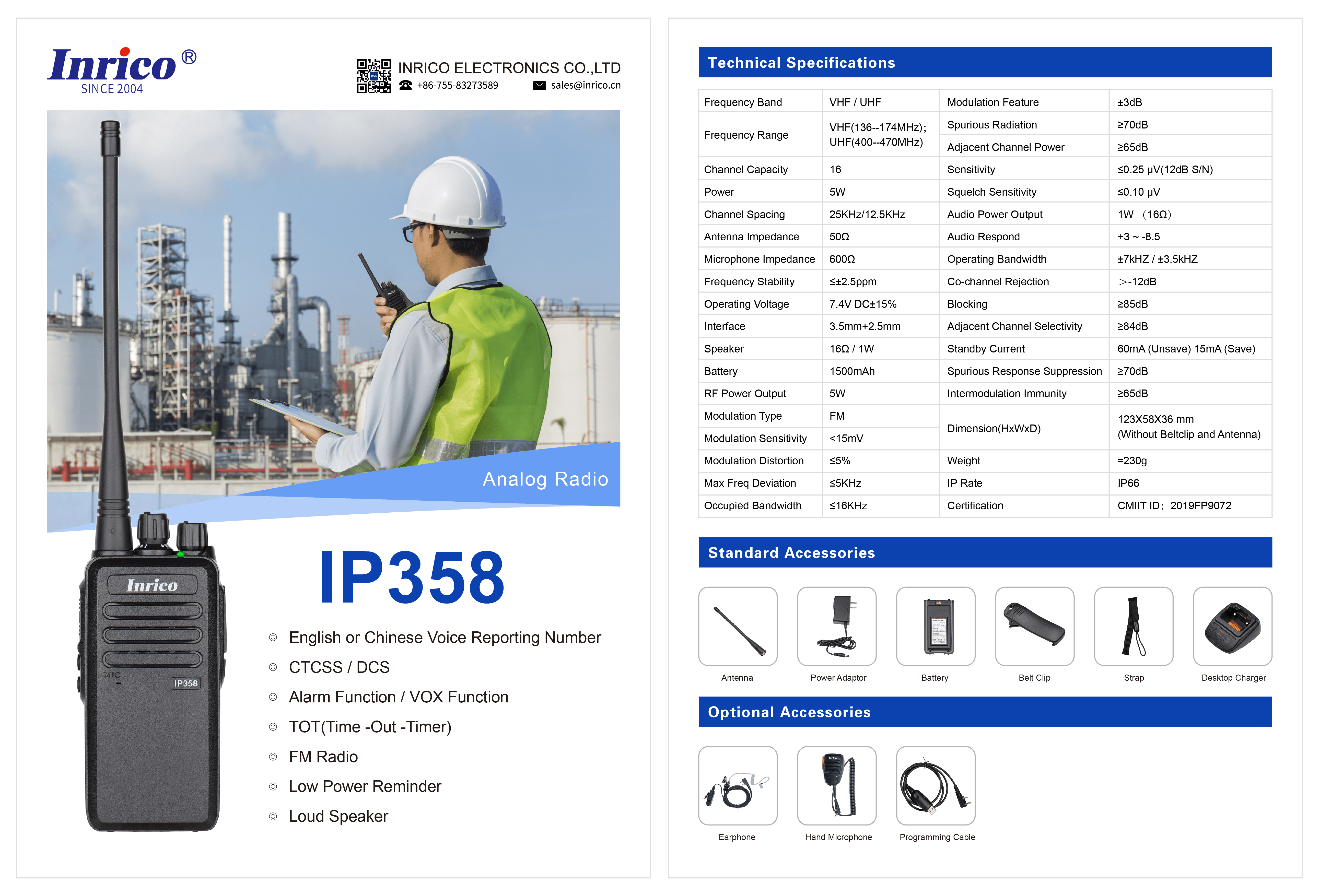

Source: Inrico IP358 analogue radio datasheet (product gallery)
In the box
- Antenna
- Power adaptor
- Battery
- Belt clip
- Strap
- Desktop charger
ICASA type approved
Type approved for South Africa
The IP358 is type approved by ICASA for sale in South Africa, and Inrico rates it IP66 against dust and powerful water jets.
ICASA type approval
TA-2021/1250
- Type approved for sale in South Africa
- UHF 400 to 470 MHz, analogue FM
- 5 W of power on 25 kHz channels
Issued to Inrico SA on 23 July 2021.
Ingress protection
IP66
- Dust tight
- Protected against powerful water jets from any direction
- Handles storms, hosing and dusty sites
Not rated for submersion, so keep it out of water.
Certificate TA-2021/1250, ICASA
ICASA certificate (PDF)
