Coming soon Where it's used
A handheld for teams on foot, suited to sites with an existing licensed network, live tracking on the dispatch map and NFC checkpoint patrols.
- Public safety
- Supermarket
- Emergency response
- Transportation
- Energy
- Rail
Inrico IRC390 Smart Multi-Mode Radio

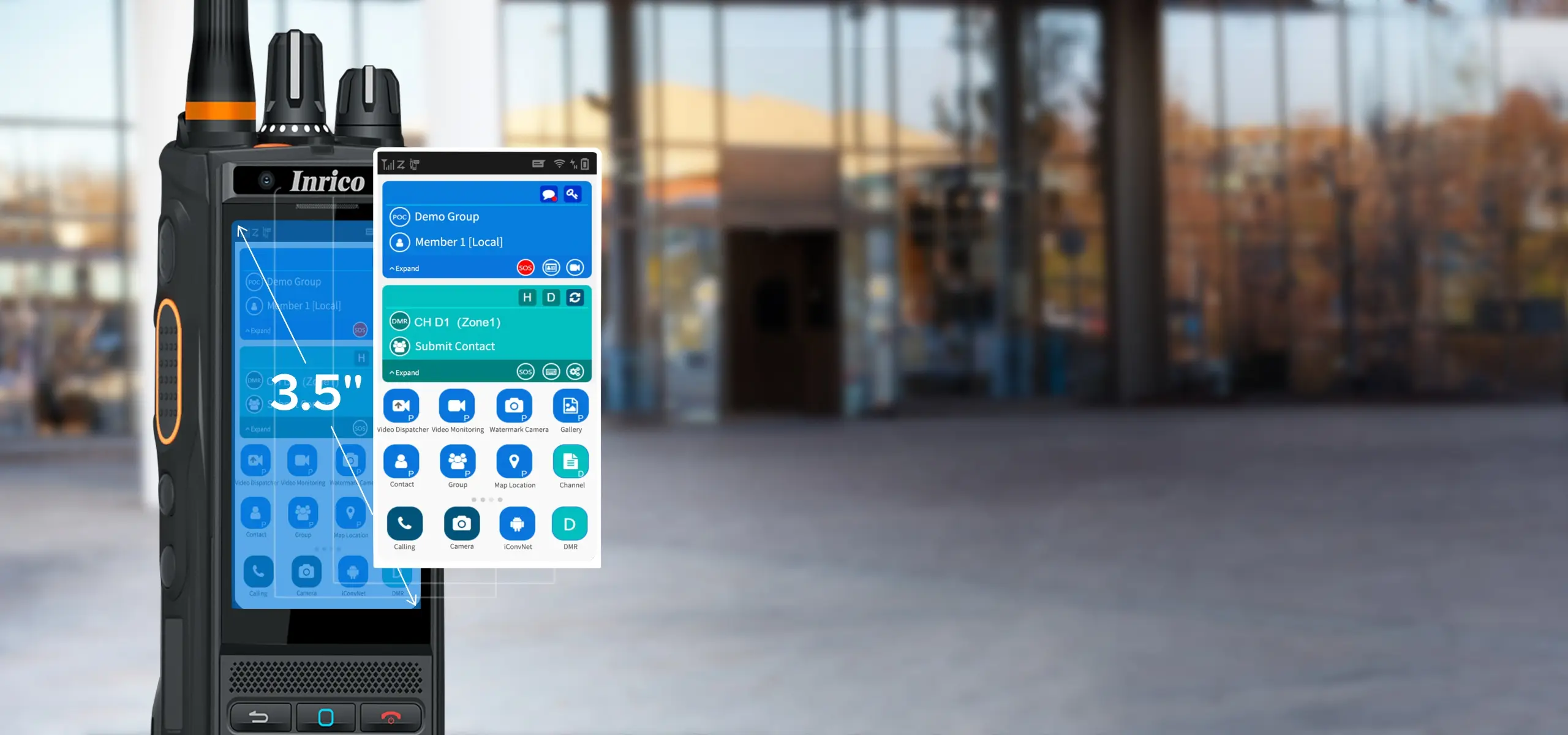

Larger Screen, Smoother Workflow
The 3.5" large screen supports multi-business applications and integrates seamlessly with users’ workflows. Featuring enlarged icons and text alongside precise touch control, it reduces the risk of misoperation and ensures smoother, more efficient interactions, even when operating with wet hands or while wearing gloves.

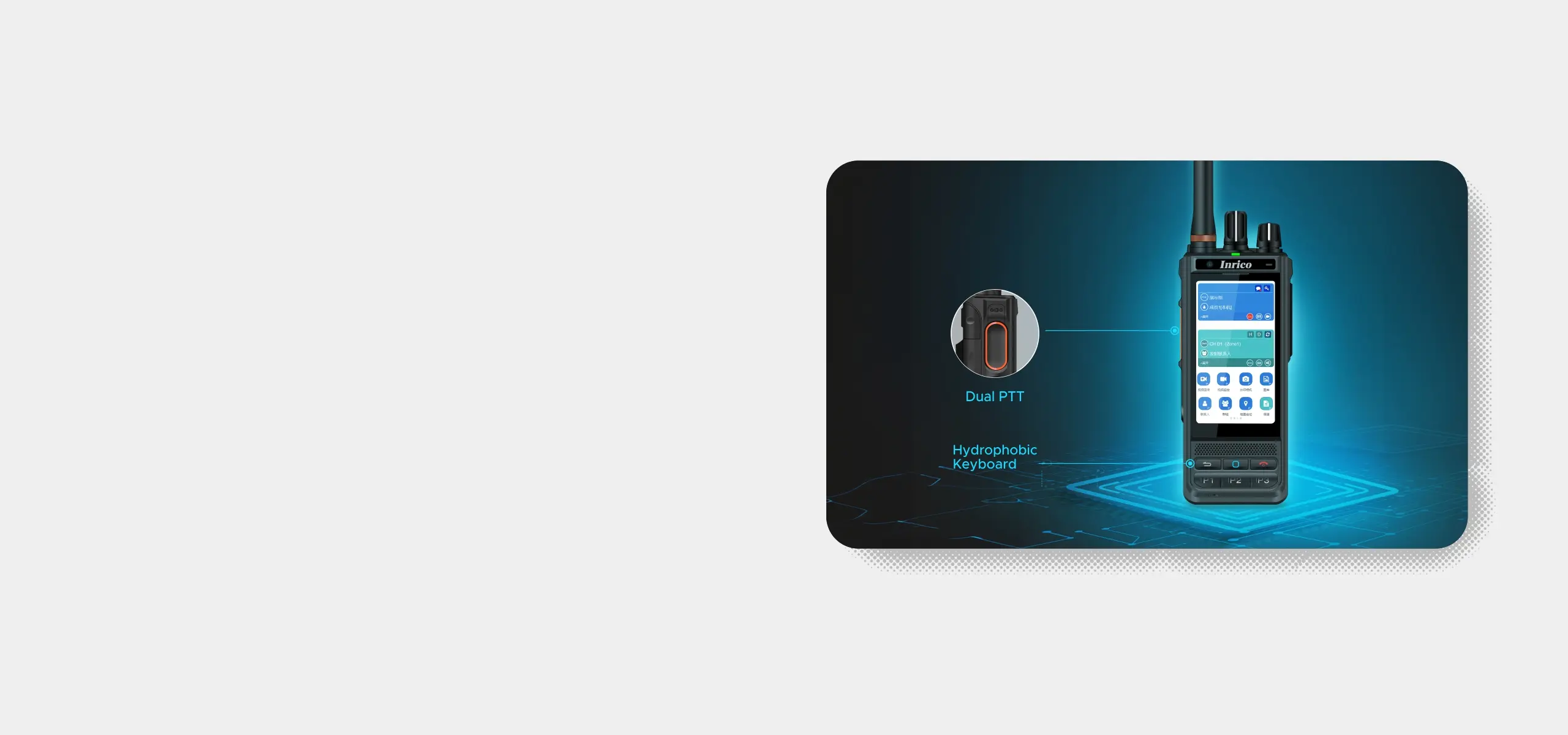

Better User Friendliness
IRC390 goes the extra mile with a distinctive design of dual PTT buttons allowing for simultaneous public and private network calls with one PTT push. Its ergonomic design of front- facing NFC for rapid one-handed patrol clock-ins and one-key toolbox for customized shortcut buttons give great ease and flexibility in operation.

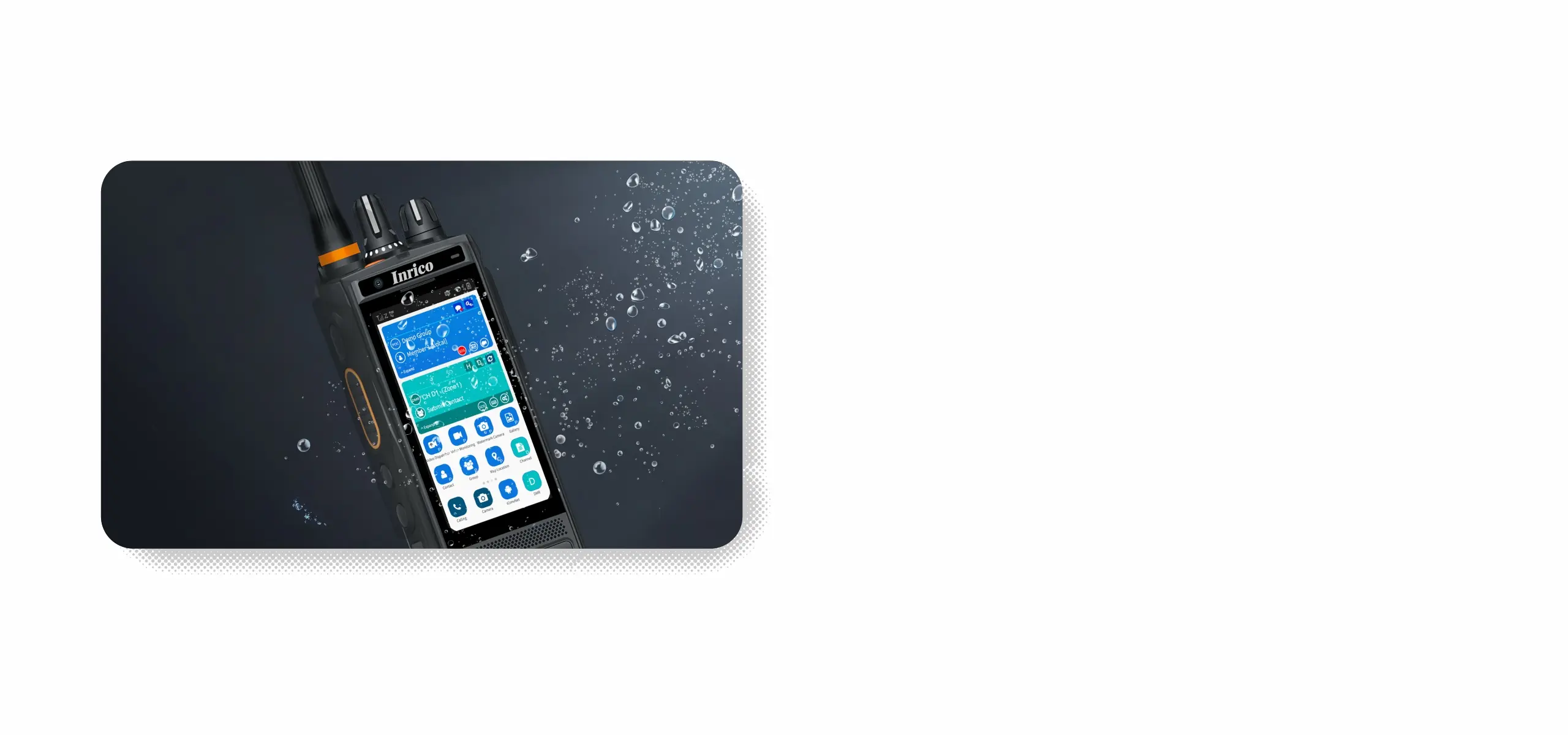

Rugged and Durable
Built tough with MIL-STD-810H compliance and IP68 protection, it thrives in extreme conditions. The one key toolbox design, water drai age keyboard, and internally reinforced antenna make it user-friendly and durable.

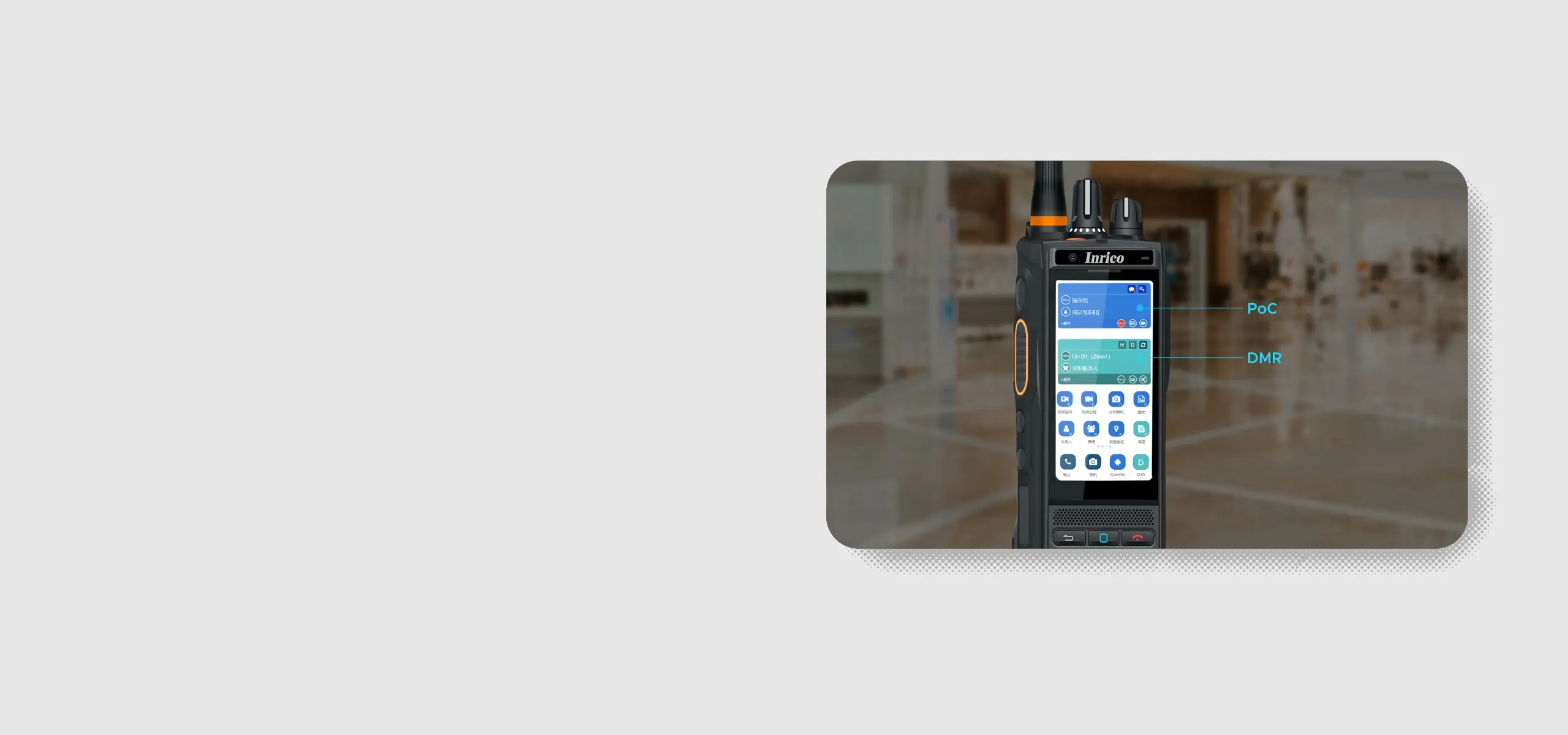

Multi-mode Capability
With the ability to access both PMR and cellular networks, this multi-mode device is an ideal solution for mission- and business-critical users operating in demanding environments. Dual PTT buttons enable simultaneous transmission over public and private networks with a single press, enhancing on-site efficiency and ensuring seamless communication across scenarios.
Specification
Hardware
| RAM + ROM | 4GB + 64GB (3GB + 32GB compatible) |
|---|---|
| Expand memory | 256GB (max) |
| Card slot | Dual nano SIM + TF card |
| Interface | 13-pin |
| USB | Type-C |
| OTG | Supported, via the 13-pin interface |
| Screen | 3.5", 480 × 800 |
| Camera | Front 5.0MP; rear 13.0MP, 120° ultra-wide |
| Speaker | Ø36mm waterproof, 8Ω 3W |
| Microphone | Primary + secondary + noise-cancellation |
| Battery | 3,100mAh |
| Dimensions (H×W×D) | 162.3 × 61 × 34 mm (without belt clip and antenna) |
| Weight | 458 g |
| Working temperature | −20°C to +60°C |
| Storage temperature | −40°C to +75°C |
Operating system
| OS | Android 10 |
|---|
DMR
| Frequency range | UHF 400-480MHz, VHF 136-174MHz |
|---|---|
| Channel capacity | 1024 |
| Channel spacing | 25kHz / 12.5kHz |
| Power output | UHF high 4W / low 2W; VHF 5W |
| Receiver sensitivity | ≤ −123dBm |
| Encryption | ARC4 / AES128 / AES256 |
| Licence agreement | Tier II |
Connection
| 2G | B2 / B3 / B5 / B8 |
|---|---|
| 3G | B1 / B2 / B4 / B5 / B8 |
| 4G FDD | B1/B2/B3/B4/B5/B7/B8/B12/B14/B17/B20/B26/B28/B66 |
| 4G TDD | B38 / B39 / B40 / B41 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/k/v/r, 2.4G & 5G |
| Bluetooth | BT4.0 & BLE 5.0 |
| NFC | Supported |
| Navigation | GPS, GLONASS, AGPS |
Certification
| Drop | 1.5 m |
|---|---|
| Ingress protection | IP68 |
| Certification | CE / FCC / MIL-STD-810H / GMS |
Source: Inrico IRC390 brochure (product parameters, page 2)
In the box
- Antenna
- Battery
- Belt clip
- Strap
- USB cable
- Desktop charger
- Desktop charger adapter
