Where it's used
A handheld for teams on foot, suited to live tracking on the dispatch map, NFC checkpoint patrols and outdoor work in dust and wet.
- Security
- Utilities
- Construction
- Logistics
Inrico S100 4G + Docking Station

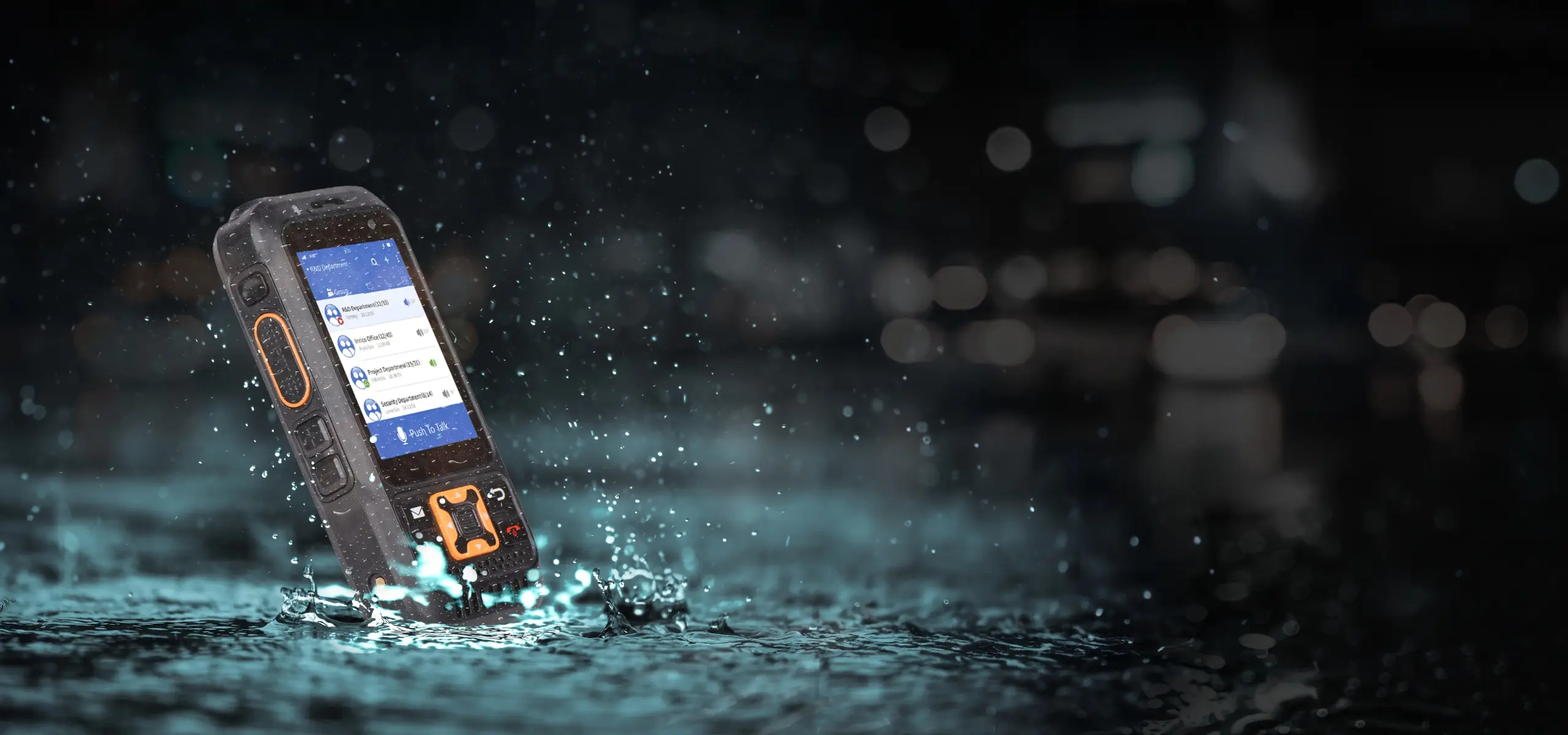

Rugged Design, Unyielding Performance
Built for durability, the S100 boasts exceptional craftsmanship and an IP66 rating for dust and water resistance, ensuring reliable communication even in the harshest environments.

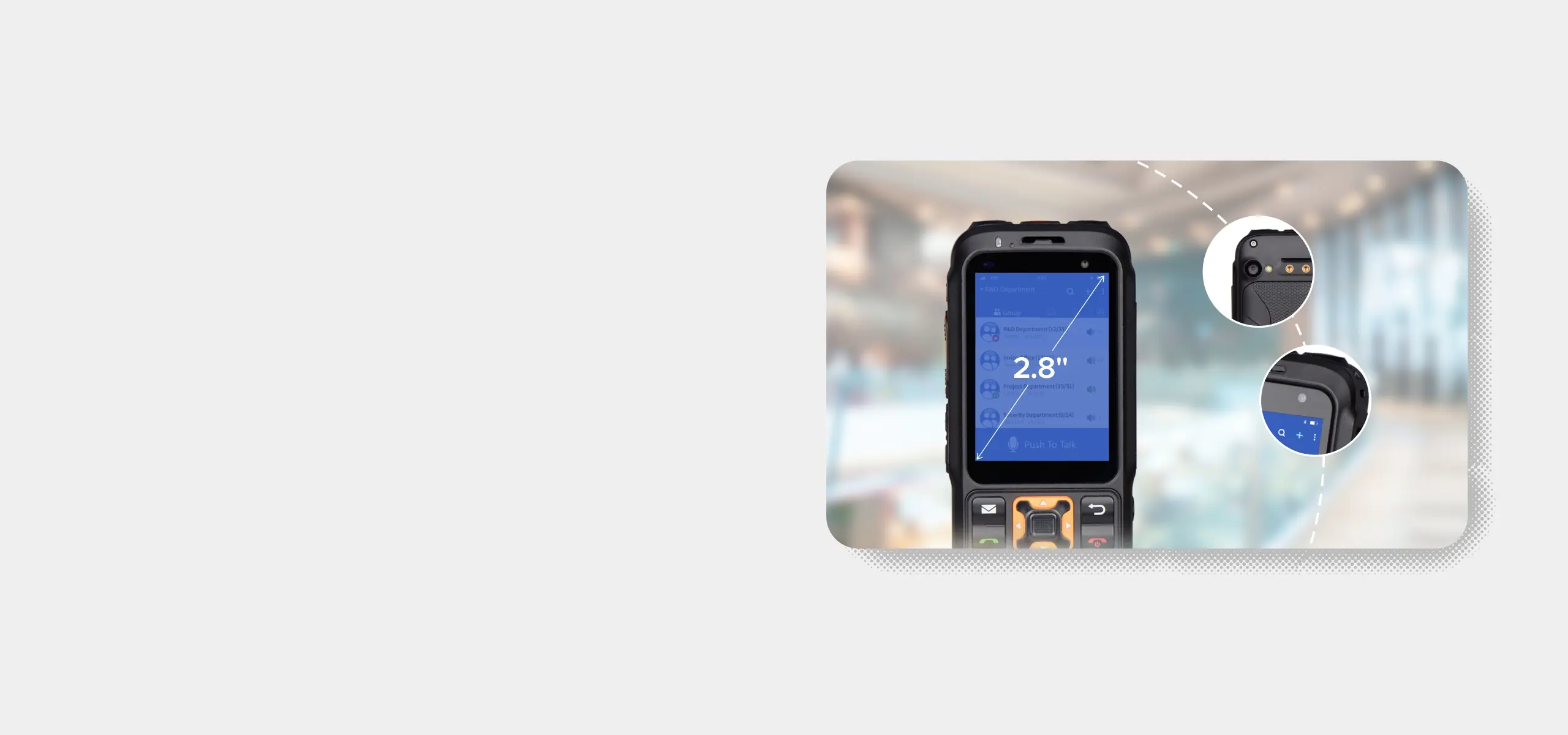

HD Display and Dual Camera
Equipped with a 2.8″ HD touchscreen featuring a 320*240 pixel resolution, offering intuitive functionality and enhanced imaging capabilities for a superior user experience.
Long-Lasting Battery
Powered by a 4,000mAh battery, providing up to 21 hours of operation based on a 5/5/90 duty cycle. A Micro-USB charger ensures convenient and hassle-free charging.

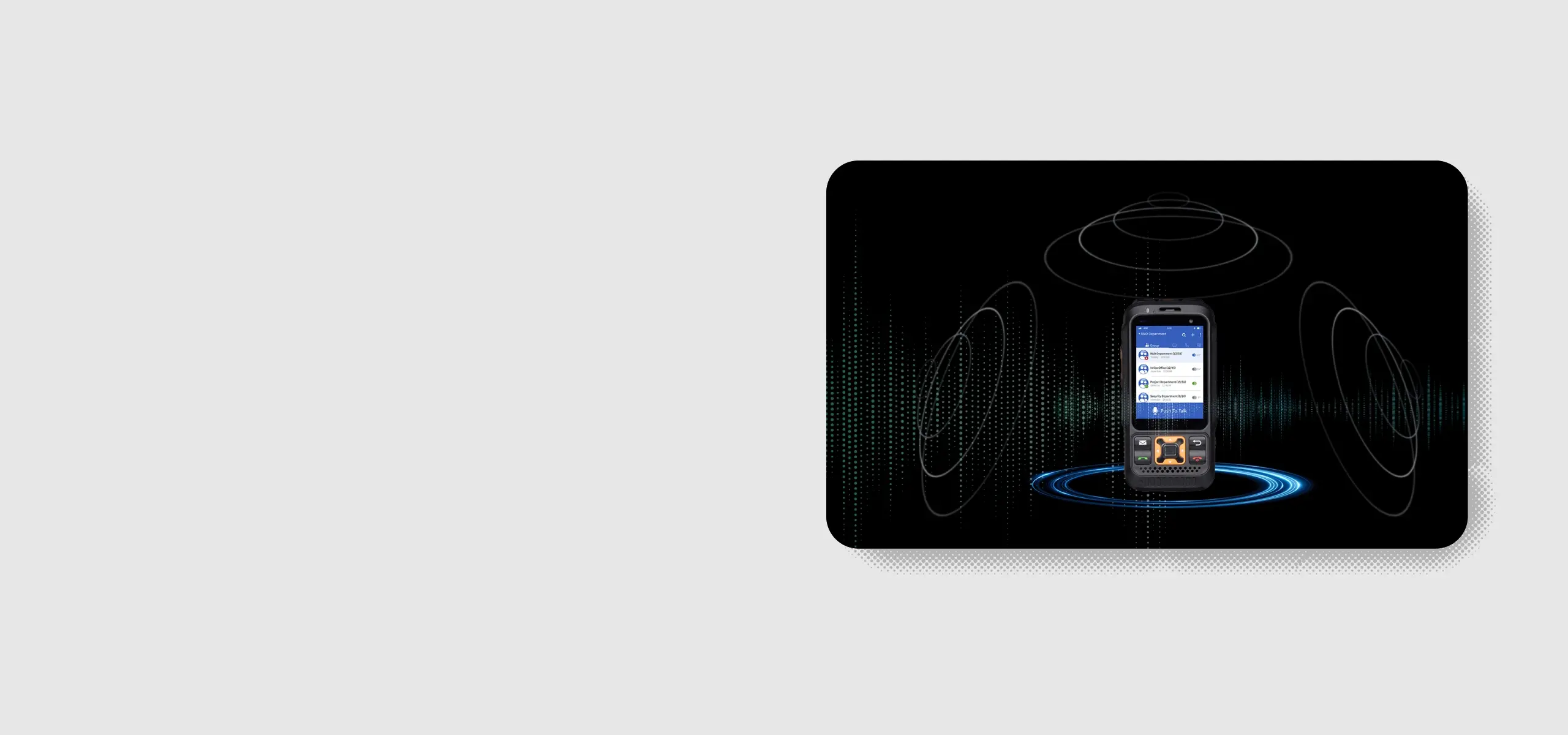

Superior Audio Quality
Delivers stereo sound through a Ø36mm loudspeaker with noise cancellation technology for clear and powerful audio in any environment.
Specification
Hardware
| CPU | MT6739 |
|---|---|
| RAM + ROM | 1GB + 8GB |
| USB | Micro USB |
| Card slot | Micro SIM (3FF) + TF card |
| Interface | M6 |
| Screen | 2.8″, 320 × 240 pixel |
| Cameras | Front 2MP; rear 13MP |
| Flashlight | Support |
| Speaker | Ø36mm, 8Ω / 2W |
| Battery | 4000mAh |
| Talk time | 21 hrs |
| Standby time | 25 hrs |
| Operating system | Android 8.1 |
| Dimensions (H×W×D) | 129.2 × 64.5 × 26 mm (without belt clip and antenna) |
| Weight | ≈ 220 g |
Connection
| EU band | GSM B2/B3/B5/B8 · WCDMA B1/B5/B8 · FDD-LTE B1/B3/B5/B7/B8/B20/B28A/B28B · TDD-LTE B38/B40/B41 |
|---|---|
| US band | GSM B2/B3/B5/B8 · WCDMA B2/B4/B5 · TDD-LTE B38/B40 · FDD-LTE B2/B3/B4/B5/B7/B8/B12/B17/B28A/B28B/B66 |
| Wi-Fi | 802.11 a/b/g/n, 2.4G & 5G dual band |
| Bluetooth | BT4.2 & BLE |
| Navigation | GPS, AGPS (BDS optional) |
| NFC | Support |
Certification
| IP rate | IP54 (IP67 optional) |
|---|---|
| Certification | CE / FCC |
Source: Inrico S100 4G LTE PoC radio datasheet (product gallery)
In the box
- USB cable
- Power adaptor
- Battery
- Belt clip
- Strap
Type approved for South Africa
The S100 is type approved by ICASA for sale and use in South Africa, and Inrico rates it IP54 against dust and splashing water.
TA-2021/1246
- Type approved for sale and use in South Africa
- 4G LTE bands 1, 3, 7, 8, 20, 38 and 40, plus 2G and 3G
- GPS is covered too
Issued to Inrico SA on 23 July 2021.
IP54
- Protected against dust
- Protected against splashing water from any direction
- Handles rain and dusty sites
Not rated for water jets or submersion, so keep it out of wash-downs.
