Where it's used
An in-cab unit for drivers and fleets, suited to a panic button within reach of the driver and in-cab photo and video.
- Transport & fleet
- Logistics
- Municipal
Inrico TM-9 4G LTE Mobile Radio

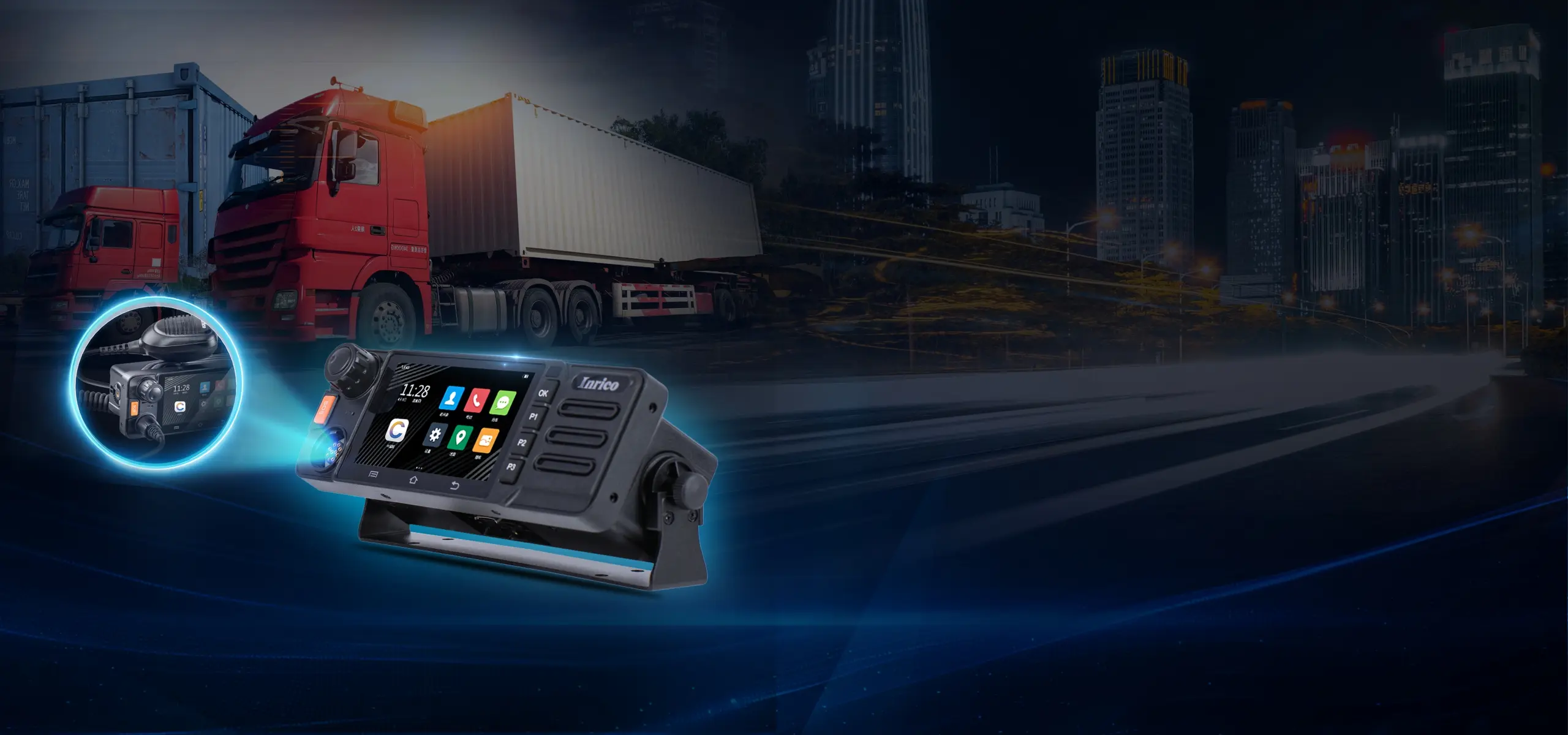

RSM Interface for Accessory Compatibility
The TM-9's palm-sized mic connector supports a wide range of accessories, providing flexible and cost-effective options to meet diverse user needs.

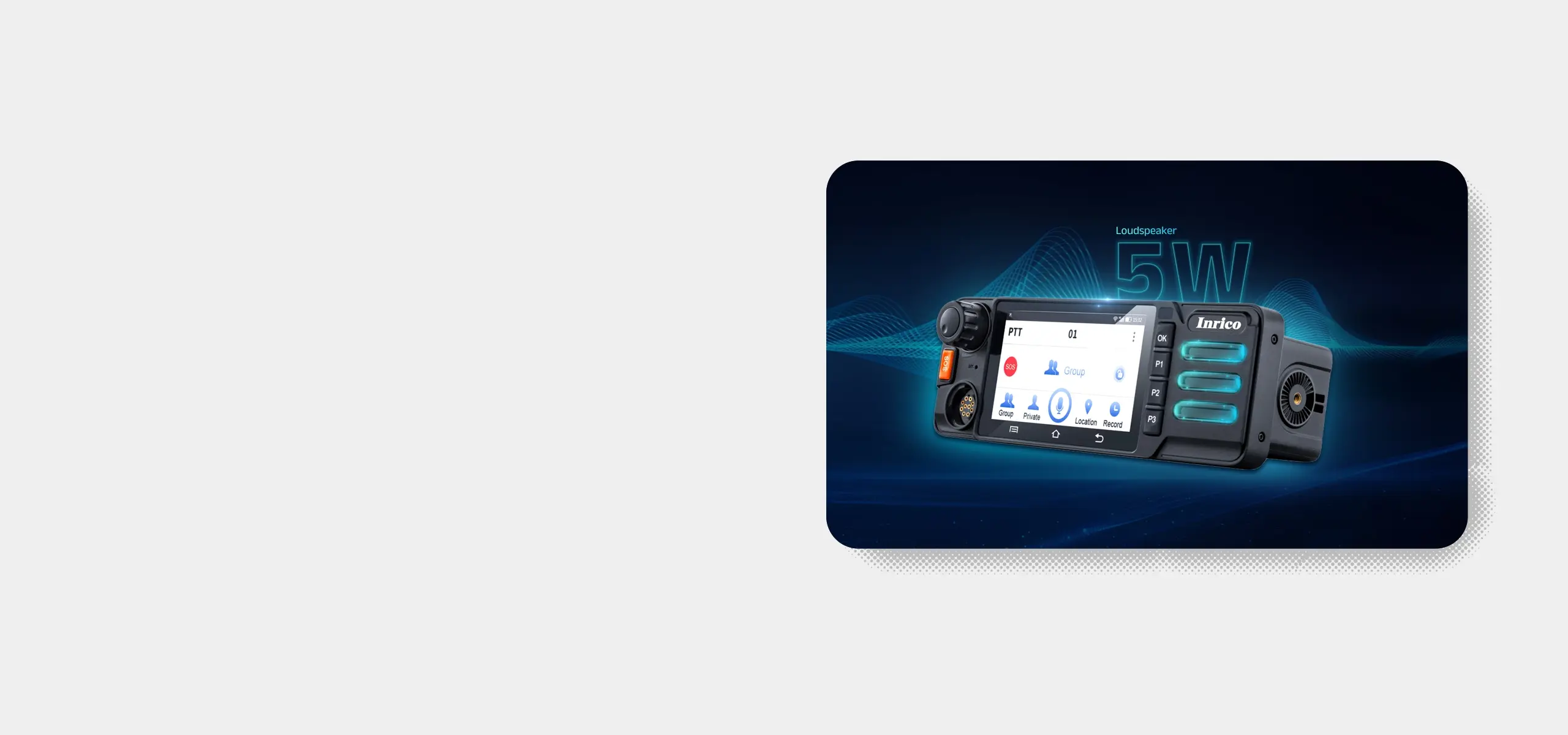

5W High-Output Loudspeaker
The TM-9 features a 5W loudspeaker with a bass stereo design, delivering clear audio in noisy environments. This ensures effective communication during driving or in other high-noise situations, providing both volume and clarity.

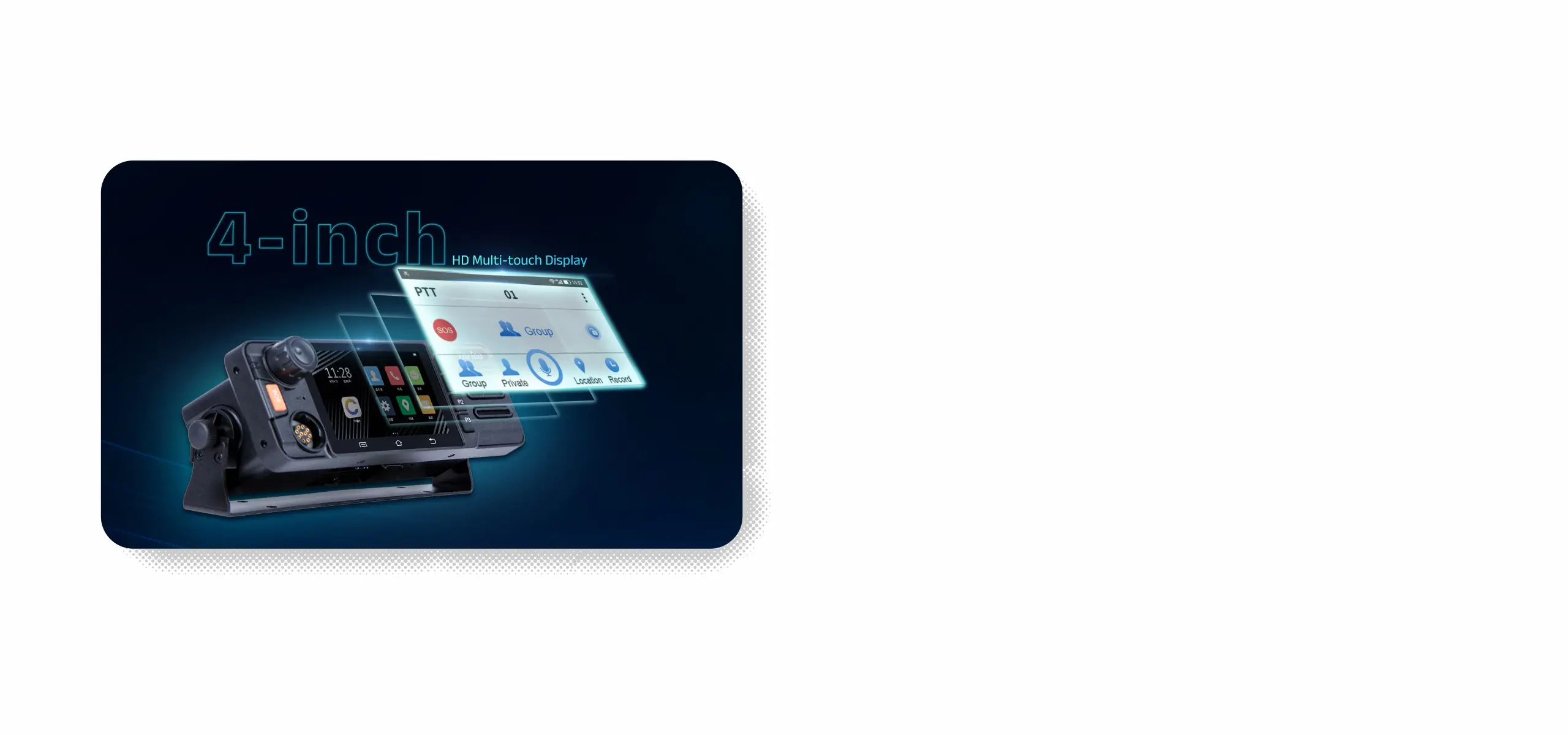

High-Definition Display
The Inrico TM-9 is equipped with a 4″ HD multi-touch display, providing clear and easily readable content. The large screen makes menu selection quick and simple, enhancing the overall user experience with responsive touch functionality

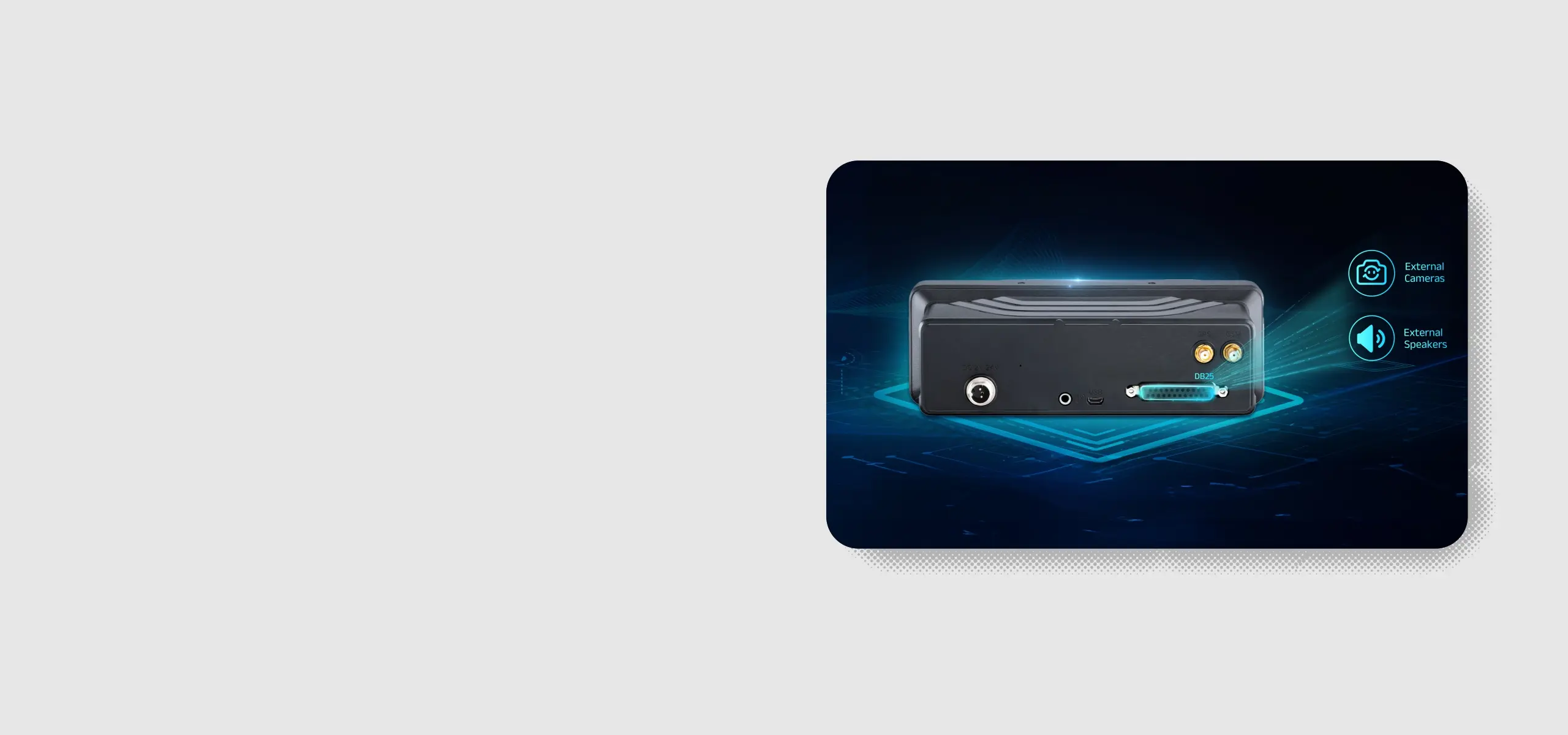

DB25 Port for External Connectivity
Equipped with a DB25 port, the TM-9 supports seamless integration with external devices, including cameras and speakers, expanding its functionality and versatility.
Specification
Hardware
| CPU | MT6739 |
|---|---|
| RAM + ROM | 1GB + 8GB |
| USB | Micro USB 2.0 |
| Card slot | Dual SIM card + TF card |
| Screen | G+F touch screen |
| Screen size | 4″ OLED, 360 × 640 RGB |
| Camera | Optional; external camera |
| Speaker | 3558 runway type speaker, 5W |
| External speaker | Yes |
| Hand microphone | Support |
| Interface | Aviation headset microphone interface · external camera (720P/1080P) · RJ-45 (optional) · GPS external antenna · main antenna external · DB25 |
| Operating system | Android 7.1.1, CarPlay feature |
| Dimensions (H×W×D) | 62.1 × 195.1 × 88.6 mm |
| Weight | ≈ 500 g |
Connection
| EU band | GSM B2/B3/B5/B8 · WCDMA B1/B5/B8 · LTE-TDD B38/B40/B41 · LTE-FDD B1/B3/B5/B7/B8/B20/B28A/B28B |
|---|---|
| US band | GSM B2/B3/B5/B8 · WCDMA B2/B4/B5 · LTE-TDD B38/B40 · LTE-FDD B2/B3/B4/B5/B7/B8/B12/B17/B28A/B28B/B66 |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4G & 5G |
| Bluetooth | BT4.0 + BR/EDR + BLE / BT5.0 |
| Navigation | GPS, AGPS |
Certification
| IP rate | IP54 |
|---|

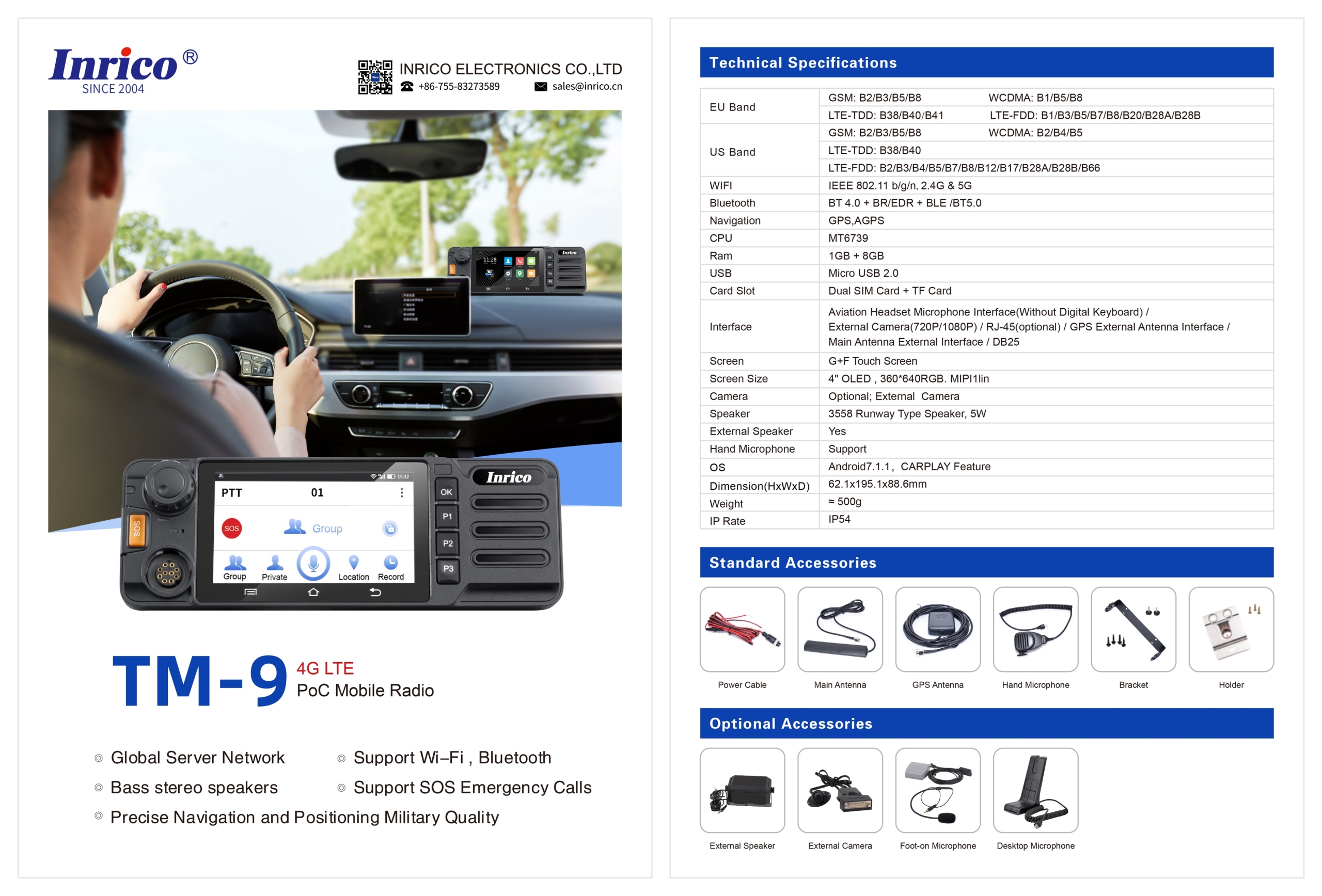

Source: Inrico TM-9 4G LTE PoC mobile radio datasheet (product gallery)
In the box
- Power cable
- Main antenna
- GPS antenna
- Hand microphone
- Bracket
- Holder
Type approved for South Africa
The TM-9 is type approved by ICASA for sale and use in South Africa, and Inrico rates it IP54 against dust and splashing water.
TA-2021/3121
- Type approved for sale and use in South Africa
- 4G LTE bands 1, 3, 7, 8, 20, 38 and 40, plus 2G and 3G
- Bluetooth, Wi-Fi and GPS are covered too
Issued to Inrico SA on 24 February 2022.
IP54
- Protected against dust
- Protected against splashing water from any direction
- Handles rain and dusty sites
Not rated for water jets or submersion, so keep it out of wash-downs.
